Fixed sized PP leaf-guard - diameter 160 mm
To protect the drain-pipe from leaves and dirt, we always recommend to install a leaf-guard on the roof drain. The ETERNO range offers leaf-guards made of PP with fixed size from 60 to 200 mm diameter, a PP leafguard with variable size from 60 to 140 mm diameter, metallic leafguards made of zinc, copper and stainless steel with variable size from Ø 60 to Ø 120 mm, and a specific PP leaf-guard for angular drains with a 45° corner.

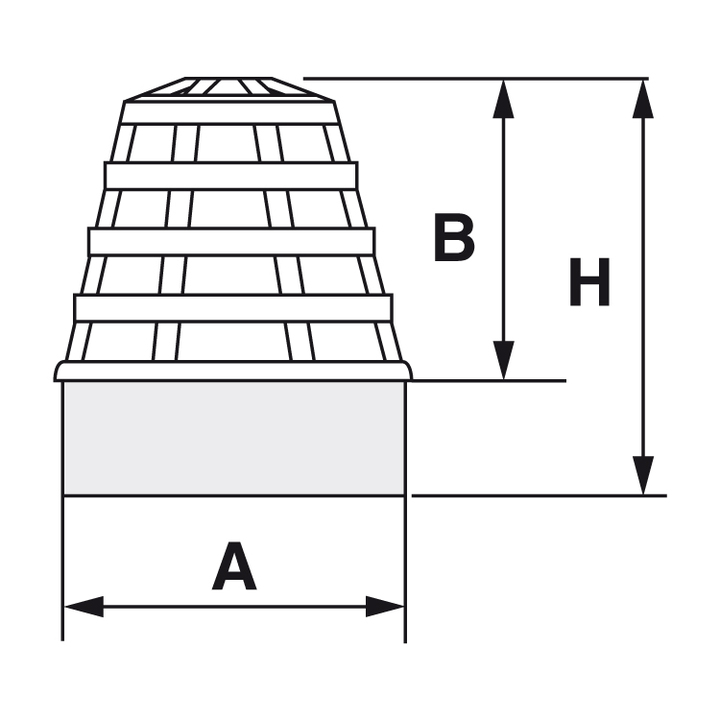

| A | 143 mm |
|---|---|
| B | 75 mm |
| H | 105 mm |
|
Match the diameter of your drain and choose the right leaf guard |
|
|---|---|
| Eterno h 200 Ø | 160 |
| Eterno h 500 Ø | 150 |
| Mondial Ø | |
| Euro / Genius Ø | |
| Code | Type | Pcs (Box) | Pcs (Pallet) |
|---|---|---|---|
| C001000160 | PP Leaf-guard | 15 | 1050 |
Specifications
| MATERIALS | Polypropylene |
| COMPATIBILITY | Any type of waterproofing membrane |
